Made in Korea
NWM copper coils & pipes
Nungwon Metal, Korea's copper tube maker since 1986. UL 700 psi coils for R-410A, 1/4" to 1-1/8", ASTM B280.
Get an NWM price ↗View sizes & specs →Copper coils & pipes

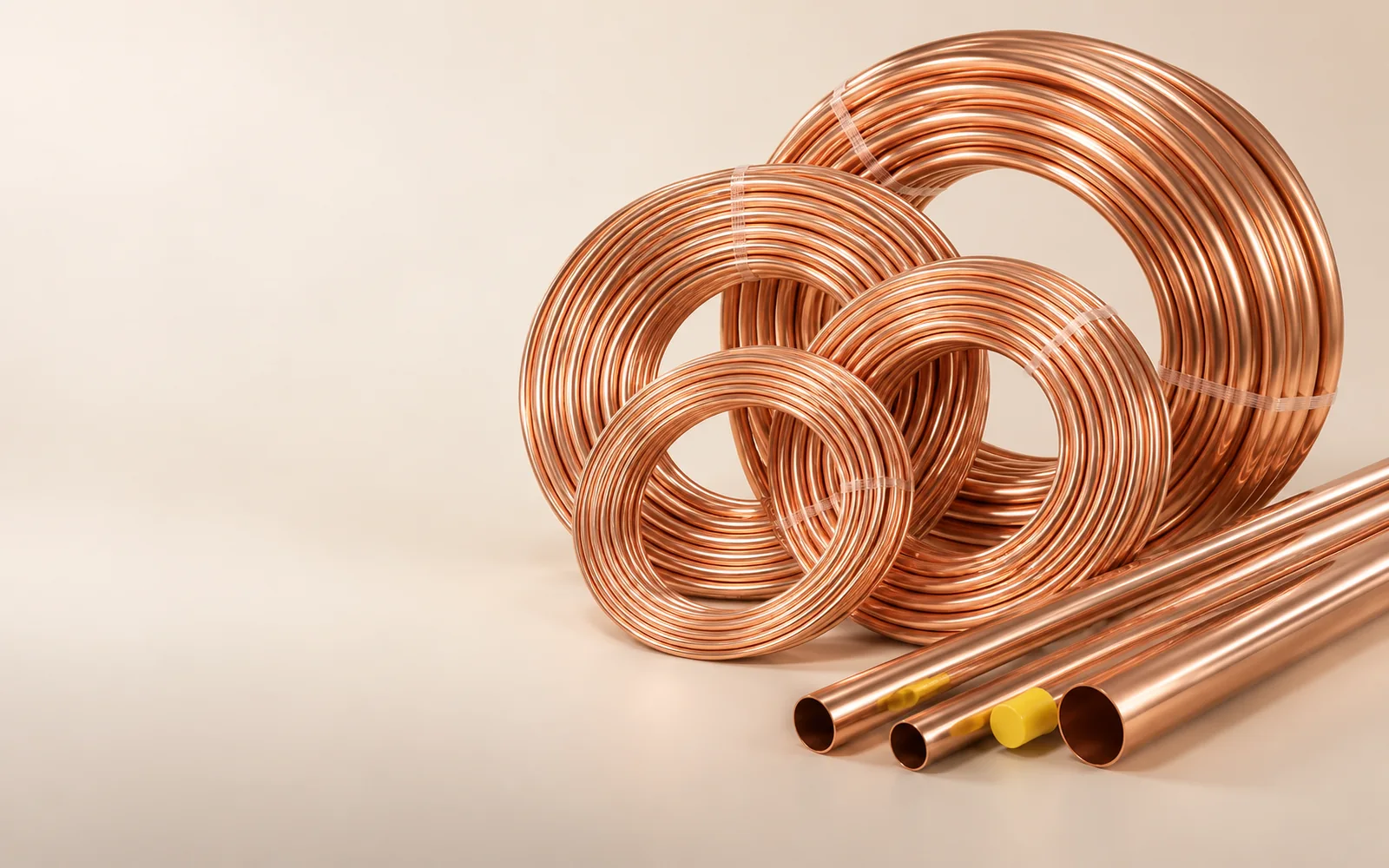

Refrigeration-grade copper for AC installation and service, from four brands, in every common size.
COPPER COILS · COPPER PIPES · INSULATION
The right copper, for every AC job.
Soft-drawn coils and hard-drawn straight pipes in 1/4" to 1-1/8", cleaned, capped and ready for installation. Contractor pricing on full coils and project quantities.
- Refrigeration grade, not plumbing grade
- Four brands to match spec and budget
- Same-day quotes, UAE-wide delivery
OUR COPPER BRANDS
Copper coil and pipe brands we supply in the UAE
Tell us the brand you are specified to use, or ask us to recommend one for your budget and lead time.
Made in South Africa
Maksal copper coils & pipes
Standard (ASTM B280) and Economical coils, 50 ft, plus hard-drawn lengths to 4-1/8". C12200 copper.
Get a Maksal price ↗View sizes & specs →
Made in USA
Mueller copper coils & pipes
Streamline service coils 1/8" to 1-5/8" and nitrogenized ACR lengths. UL 700 psi sizes, made in USA.
Get a Mueller price ↗View sizes & specs →
Made in Korea
Trox copper coils & pipes
Made by Nungwon Metal, Korea. UL 700 psi R-410A coils in B280 standard and B743 economy wall.
Get a Trox price ↗View sizes & specs →SIZES & SPECIFICATIONS
Pancake coil sizes, 15 m coils
Choose the wall thickness your job calls for. ASTM B280 standard is the heavier wall used on most split and VRF installations; ASTM B743 economy is a thinner wall for budget-sensitive work. Sizes 1/8" and 3/16" are available on request.
| Size (OD) | OD | Wall | Working pressure* | Quote |
|---|---|---|---|---|
| 1/4" | 6.35 mm | 0.030" / 0.762 mm | 1,350 psi | Get quote |
| 5/16" | 7.94 mm | 0.032" / 0.813 mm | 1,140 psi | Get quote |
| 3/8" | 9.53 mm | 0.032" / 0.813 mm | 930 psi | Get quote |
| 1/2" | 12.70 mm | 0.032" / 0.813 mm | 690 psi | Get quote |
| 5/8" | 15.88 mm | 0.035" / 0.889 mm | 600 psi | Get quote |
| 3/4" | 19.05 mm | 0.035" / 0.889 mm | 490 psi | Get quote |
| 7/8" | 22.23 mm | 0.045" / 1.143 mm | 540 psi | Get quote |
| 1-1/8" | 28.58 mm | 0.050" / 1.270 mm | 470 psi | Get quote |
| Size (OD) | OD | Wall | Working pressure* | Quote |
|---|---|---|---|---|
| 1/4" | 6.35 mm | 0.024" / 0.610 mm | 1,060 psi | Get quote |
| 5/16" | 7.94 mm | 0.024" / 0.610 mm | 830 psi | Get quote |
| 3/8" | 9.53 mm | 0.024" / 0.610 mm | 690 psi | Get quote |
| 1/2" | 12.70 mm | 0.028" / 0.711 mm | 600 psi | Get quote |
| 5/8" | 15.88 mm | 0.028" / 0.711 mm | 470 psi | Get quote |
| 3/4" | 19.05 mm | 0.032" / 0.813 mm | 450 psi | Get quote |
| 7/8" | 22.23 mm | 0.037" / 0.940 mm | 440 psi | Get quote |
*Safe working pressure at 65 °C / 149 °F for annealed coil, as published in the NWM and Trox catalogues. Hard-drawn straight ACR pipe in 5.8 m lengths from 3/8" to 4-1/8" is also available; ask for the size list.
Refrigeration grade copper tube, coils, insulation and fittings for air conditioning installation and service work, supplied clean and capped to refrigeration specification rather than plumbing grade.
CAN'T SEE YOUR MODEL?
Send us the nameplate. We'll find the match.
Most enquiries are quoted the same working day, including models we source to order.
Questions buyers ask
Which copper coils and pipes do you supply?
ACR copper coils and pipes from Mueller, NWM, Maksal and Trox: soft pancake coils and hard-drawn straight pipes, in standard wall (ASTM B280) and economy wall (ASTM B743).
How do I get a price?
Prices are not listed online. Send the model number or sizes and the quantity with Request a quote or on WhatsApp (+971 50 814 6571). Most requests are quoted the same working day.
Do you deliver across the UAE?
Yes. Botanve delivers to all seven emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain.
I'm not sure which model I need. Can you help?
Yes. Send a photo of the nameplate or rating plate on WhatsApp and we will confirm the exact match before you order.
Do you supply export buyers?
Yes. Export buyers get prices in US dollars, with delivery to their freight forwarder in the UAE and payment by USD bank transfer to our company account.
Bulk orders & projects
Your next project. Our next conversation.
From a single replacement part to a complete equipment list, tell us what you need. We help with sourcing, availability and a quotation built around your requirements.
