Fujitsu General UTY-RNKYT Wired Remote Controller
Weekly timer & built-in thermo sensor
- Wired remote controller for compatible Fujitsu General systems
- Large LCD with built-in thermo sensor
- Weekly, daily and setback timers
- Economy mode, filter reset and error display
- Group control of compatible indoor units
Why installers choose the UTY-RNKYT
Schedule the week, set Day Off, and let setback change the temperature automatically.
Reads room temperature at the controller when the indoor unit is not in the ideal spot.
Runs the system more gently to save energy in offices, shops and villas.
Filter reset, maintenance indication, defrost and error display for faster service.
Lock the buttons in public areas, hotels and offices.
One controller can run a group of compatible indoor units together.
Overview

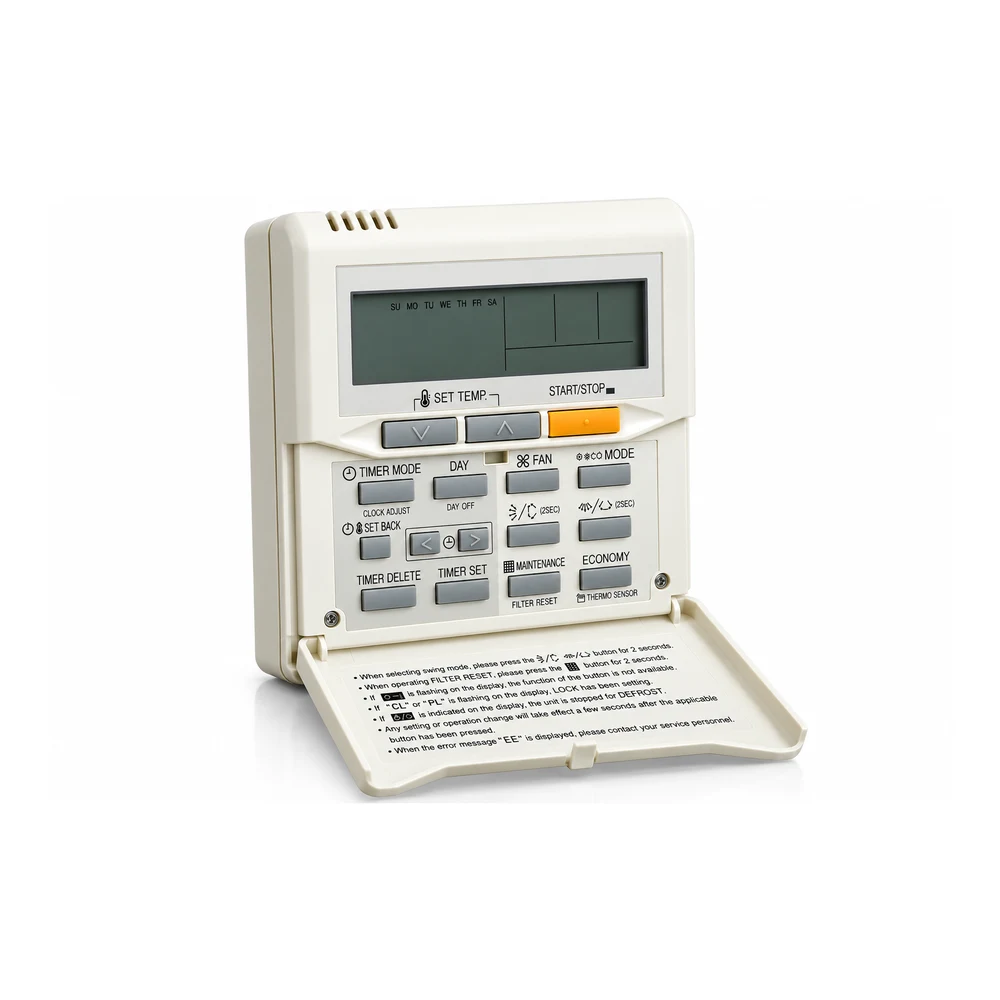

The Fujitsu General UTY-RNKYT (reference AR-6TC2) is a 3-wire wired remote controller for compatible Fujitsu General air-conditioning systems.
Its large LCD gives day-to-day control of the connected indoor unit: start and stop, set temperature, operating mode, fan speed and airflow direction, including swing where supported.
Built-in weekly and daily timers handle scheduled operation, and the setback timer changes the temperature automatically during chosen periods. The built-in thermo sensor can read room temperature at the controller, improving comfort where the indoor unit sensor is badly placed.
For service teams it offers filter reset, maintenance indication, defrost indication and error display. On compatible systems one controller can manage a group of indoor units, which suits homes, offices, shops, hotels and commercial buildings.

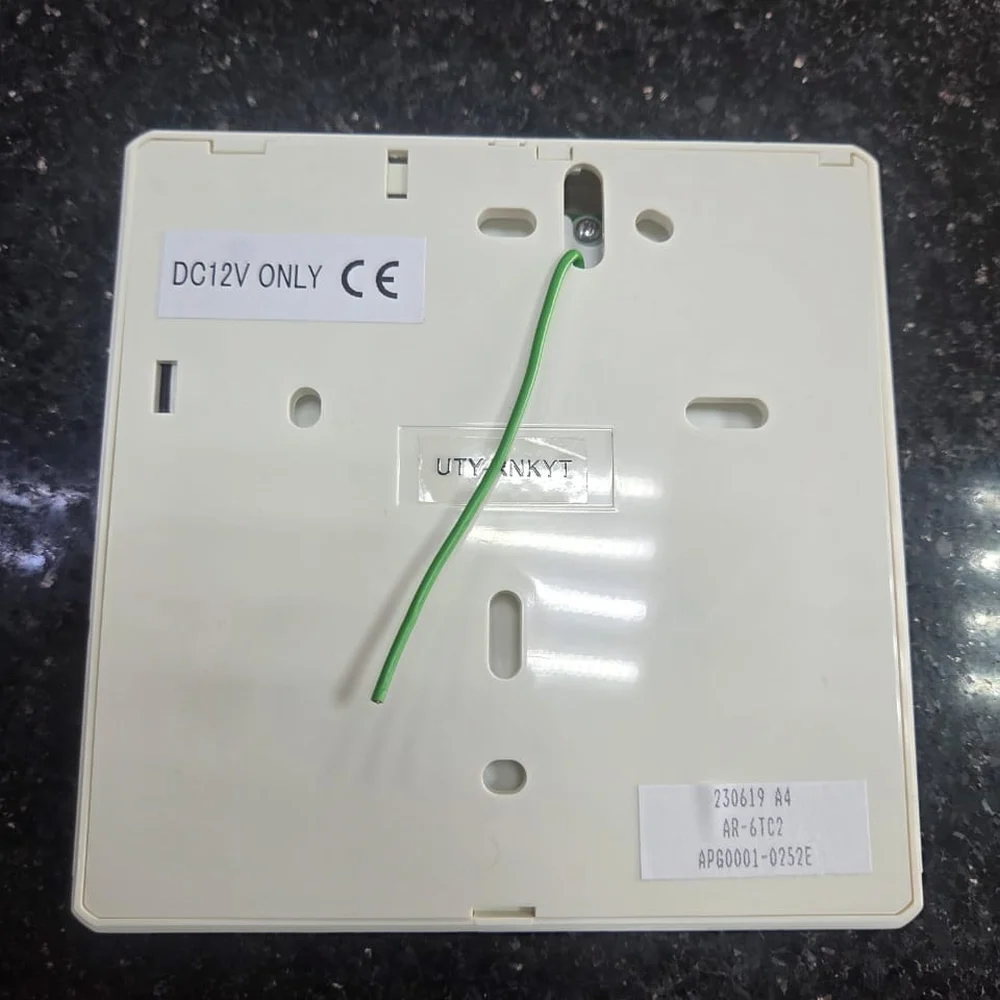

Compatibility note: Fujitsu General sells this controller design under several regional model numbers. Ours is labelled UTY-RNKYT (AR-6TC2) on the back. Confirm your indoor-unit model before ordering.
Specifications
| Manufacturer | Fujitsu General |
|---|---|
| Model | UTY-RNKYT |
| Label reference | AR-6TC2 · APG0001-0252E |
| SKU | FG-UTYRNKYT |
| Controller type | 3-wire wired remote controller |
| Power supply | DC 12 V only, supplied by the indoor unit |
| Dimensions | Approx. 120 × 120 × 18 mm |
| Weight | Approx. 160 g |
| Display | LCD |
| Temperature sensor | Built-in thermo sensor |
| Timer functions | Weekly, daily and setback |
| Group control | Compatible indoor units, depending on the system |
| Installation | Wall mounted |
| Economy mode | Supported on compatible units |
| Filter reset | Supported |
| Diagnostics | Error display supported |
Questions buyers ask
Will the UTY-RNKYT work with my Fujitsu AC?
It works with compatible Fujitsu General indoor units. Send us your indoor-unit model number or a photo of its rating plate and we will confirm compatibility before you order.
Does it need a separate power supply?
No. It runs on 12 V DC supplied by the indoor unit through its 3-wire connection.
How do I know it is the right controller?
Check the label on the back of your old controller. Ours reads UTY-RNKYT with reference AR-6TC2. If yours differs, send us a photo and we will confirm the match.
Do you supply it for export?
Yes. Export buyers get prices in US dollars, with delivery to their forwarder in the UAE.
